Multi-page PDF Visual PCIe lane Map for the MSI X870E Tomahawk Wifi Motherboard.

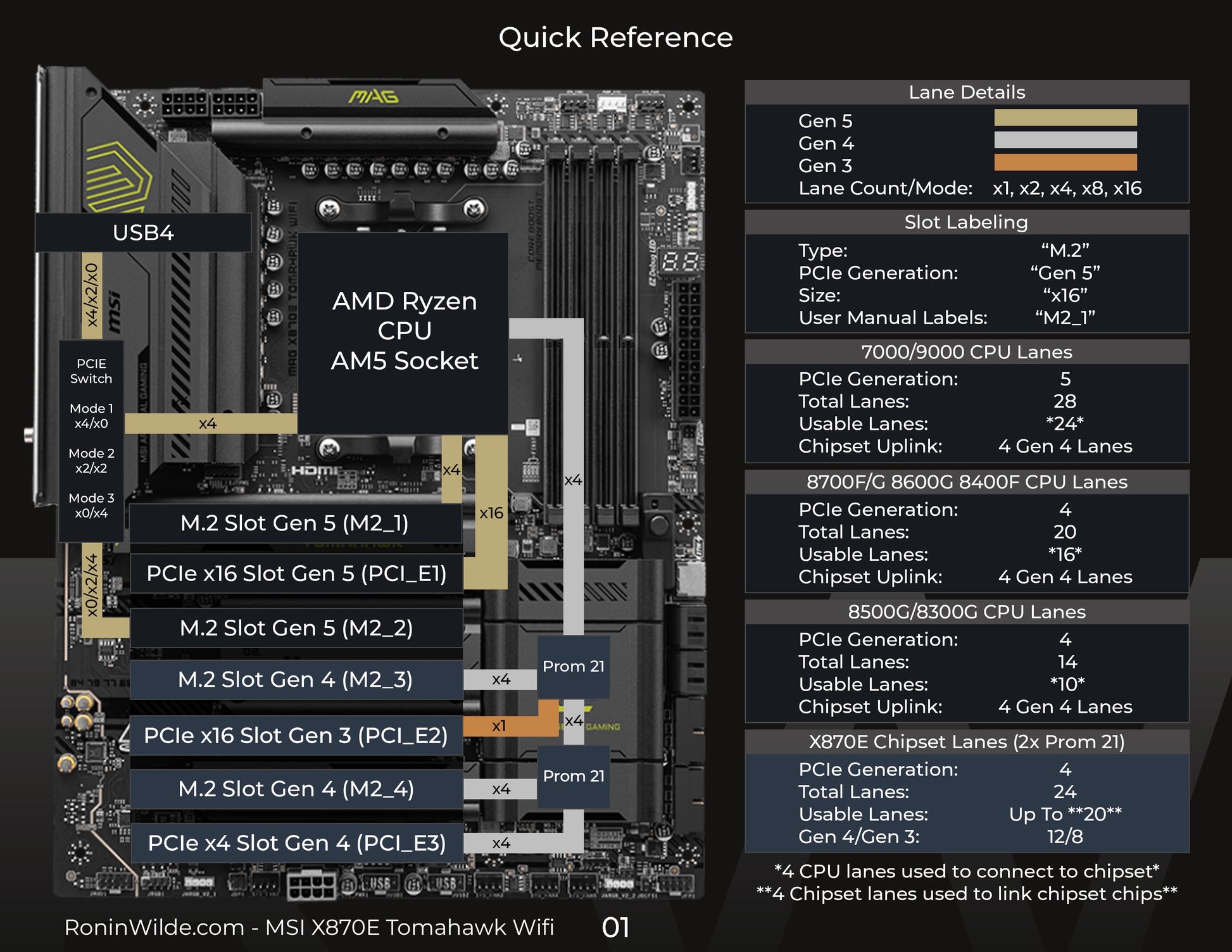

Page 1: Complete overview of the board and general PCIe lane information
Page 2: CPU direct PCIe lanes - Switch Mode 1
Page 3: CPU direct PCIe lanes - Switch Mode 2
Page 4: CPU direct PCIe lanes - Switch Mode 3
Page 5: Chipset PCIe lanes
Page 6: SATA connections and miscellaneous PCIe lanes
